Svenska沃爾沃TWD1620G柴油機柴油發電機燃油系統燃油泵
首頁
產品展示>沃爾沃TWD1620G柴油機柴油發電機燃油系統燃油泵
產品中心
沃爾沃TWD1620G柴油機柴油發電機燃油系統燃油泵
詳細描述

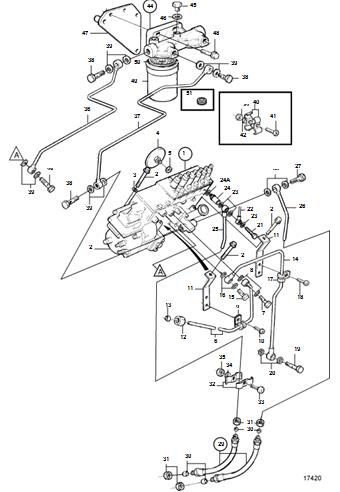

沃爾沃TWD1620G柴油機柴油發電機燃油系統燃油泵
|
Ref 1 |
Part No. 864855 |
Qty 1 |
Description Injection pump |
Notes | ||
|
3803713 |
1 |
Injection pump, exch |
Exchange unit |
|||
|
2 |
965189 |
4 |
Flange screw |
|||
|
3 |
190509 |
3 |
Washer |
|||
|
4 |
477173 |
1 |
Pressure equalizer |
|||
|
5 |
969011 |
1 |
Gasket |
|||
|
6 |
862997 |
1 |
Oil feed pipe |
|||
|
7 |
48634 |
1 |
Hollow screw |
|||
|
8 |
947281 |
2 |
Gasket |
|||
|
9 |
952623 |
1 |
Clamp |
|||
|
10 |
956092 |
1 |
Screw |
|||
|
11 |
1543721 |
2 |
Bracket |
|||
|
12 |
954356 |
1 |
Cap nut |
|||
|
13 |
954364 |
1 |
Fitting |
|||
|
14 |
862996 |
1 |
Oil return pipe |
|||
|
15 |
25167 |
1 |
Hollow screw |
|||
|
16 |
969011 |
2 |
Gasket |
|||
|
17 |
952625 |
1 |
Clamp |
|||
|
18 |
956092 |
1 |
Screw |
|||
|
19 |
25167 |
1 |
Hollow screw |
|||
|
20 |
969011 |
2 |
Gasket |
|||
|
21 |
25167 |
1 |
Hollow screw |
|||
|
22 |
1 |
Leak-off line |
||||
|
23 |
969011 |
3 |
Gasket |
|||
|
24 |
479775 |
1 |
Overflow valve |
(35096). M14 |
||
|
3825154 |
1 |
Overflow valve |
(35096). M16 |
|||
|
24A |
15304 |
1 |
Gasket |
|||
|
25 |
849211 |
1 |
Fuel pipe |
|||
|
26 |
849210 |
1 |
Fuel pipe |
|||
|
27 |
25167 |
1 |
Hollow screw |
|||
|
28 |
969011 |
2 |
Gasket |
|||
|
29 |
865737 |
2 |
Fuel hose |
|||
|
30 |
956969 |
4 |
Ferrule |
|||
|
31 |
956983 |
4 |
Nut |
|||
|
32 |
402404 |
2 |
Clamp |
|||
|
33 |
956094 |
1 |
Screw |
|||
|
34 |
955892 |
1 |
Washer |
|||
|
35 |
945407 |
1 |
Flange nut |
|||
|
36 |
865331 |
1 |
Fuel pipe |
(849213) | ||
|
37 |
865330 |
1 |
Fuel pipe |
(849212) | ||
|
38 |
25167 |
4 |
Hollow screw |
|||
|
39 |
969011 |
8 |
Gasket |
|||
|
40 |
404279 |
4 |
Clamp |
|||
|
41 |
956095 |
2 |
Screw |
|||
|
42 |
955892 |
2 |
Washer |
|||
|
43 |
955781 |
2 |
Nut |
|||
|
44 |
471172 |
1 |
Filter housing |
Replaced by filter housing 1676832 + 3 ea plug 968062. | ||
|
1676832 |
1 |
Filter housing |
REPL BY 8194541 | |||
|
8194541 |
1 |
Filter housing |
||||
|
45 |
1 |
Screw |
||||
|
46 |
1 |
Gasket |
||||
|
47 |
849769 |
1 |
Bracket |
|||
|
48 |
965185 |
2 |
Flange screw |
|||
|
49 |
3825133 |
2 |
Fuel filter |
(466987) | ||
|
50 |
6638088 |
2 Gasket | ||||
|
51 |
968062 |
3 |
Plug | |||
1零件號。
864855數量
1說明
噴油泵注意事項
3803713 1注射泵，不包括交換裝置
2 965189 4法蘭螺釘
3 190509 3墊圈
4 477173 1壓力均衡器
5 969011 1墊片
6 862997 1供油管
7 48634 1空心螺釘
8 947281 2墊片
9 952623 1個夾子
10 956092 1個螺釘
11 1543721 2支架
12 954356 1帶帽螺母
13 954364 1接頭
14 862996 1回油管
15 25167 1空心螺釘
16 969011 2墊圈
17 952625 1個夾子
18 956092 1個螺釘
19 25167 1空心螺釘
20 969011 2墊片
21 25167 1空心螺釘
22 1泄漏管線
23 969011 3墊片
24 479775 1溢流閥（35096）。14米
3825154 1溢流閥（35096）。M16米
24A 15304 1墊片
25 849211燃油管
26 849210 1燃油管
27 25167 1空心螺釘
28 969011 2墊片
29 865737 2燃油軟管
30 956969 4卡套
31 956983 4螺母
32 402404 2夾具
33 956094 1個螺釘
34 955892 1個墊圈
35 945407 1法蘭螺母
36 865331 1燃油管（849213）
37 865330 1燃油管（849212）
38 25167 4空心螺釘
39 969011 8墊圈
40 404279 4夾鉗
41 956095 2螺釘
42 955892 2個墊圈
43 955781 2螺母
44 471172 1過濾器外殼由過濾器外殼1676832+3 ea塞子968062代替。
1676832 1過濾器外殼REPL BY 8194541
8194541 1濾清器殼體
45 1個螺釘
46 1墊片
47 849769 1支架
48 965185 2法蘭螺釘
49 3825133 2燃油濾清器（466987）
50 6638088 2墊片
51 968062 3插頭
